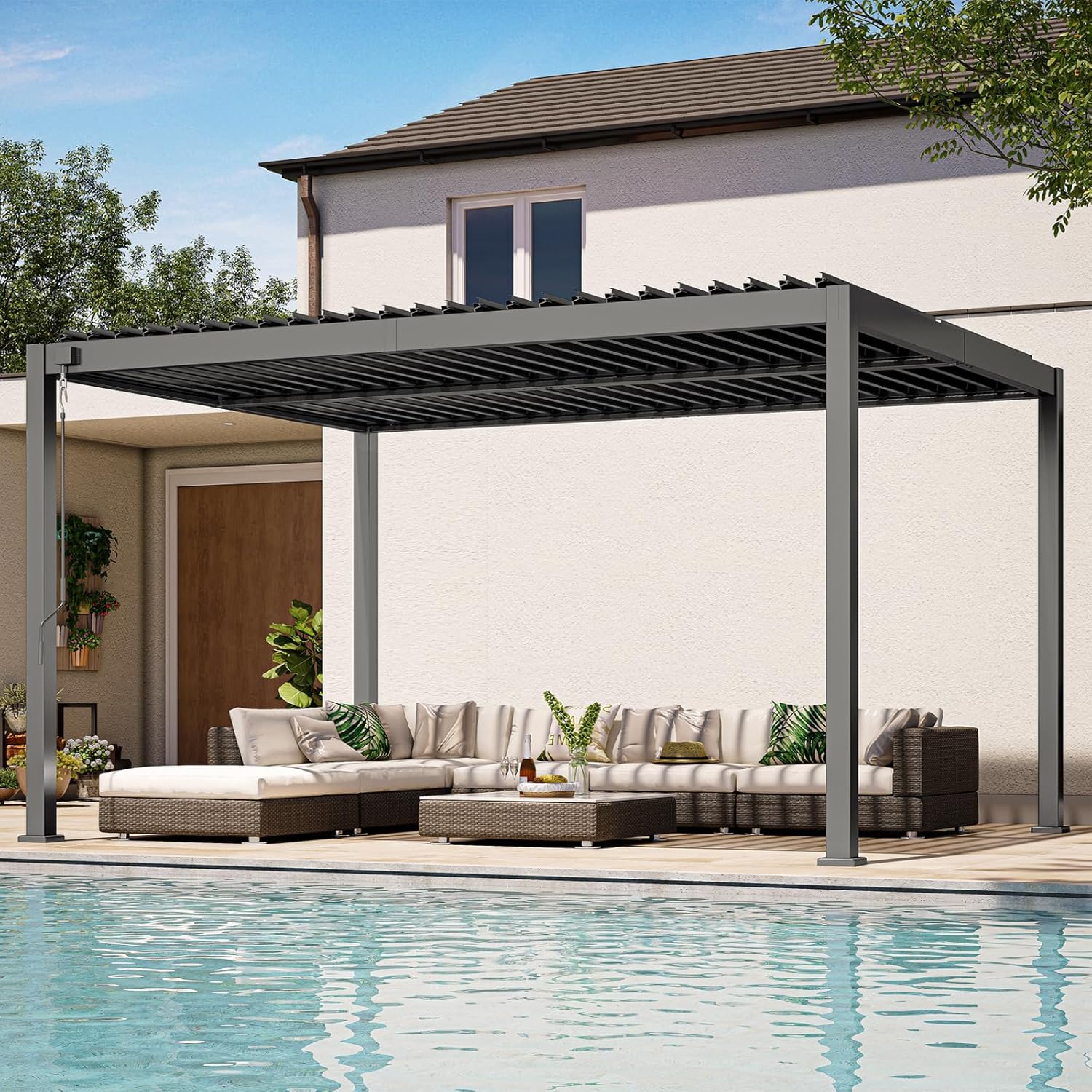

Sunvanta Atlantic 10 × 13 ft Metal Louvered Pergola – Adjustable Louvers for Patio & Backyard
Description
Description
There's a reason so many pergolas end up unused half the year — bleached out under summer UV, buried the second a winter storm rolls through, or corroding after a run of coastal humidity. The Atlantic was built to fix exactly that.

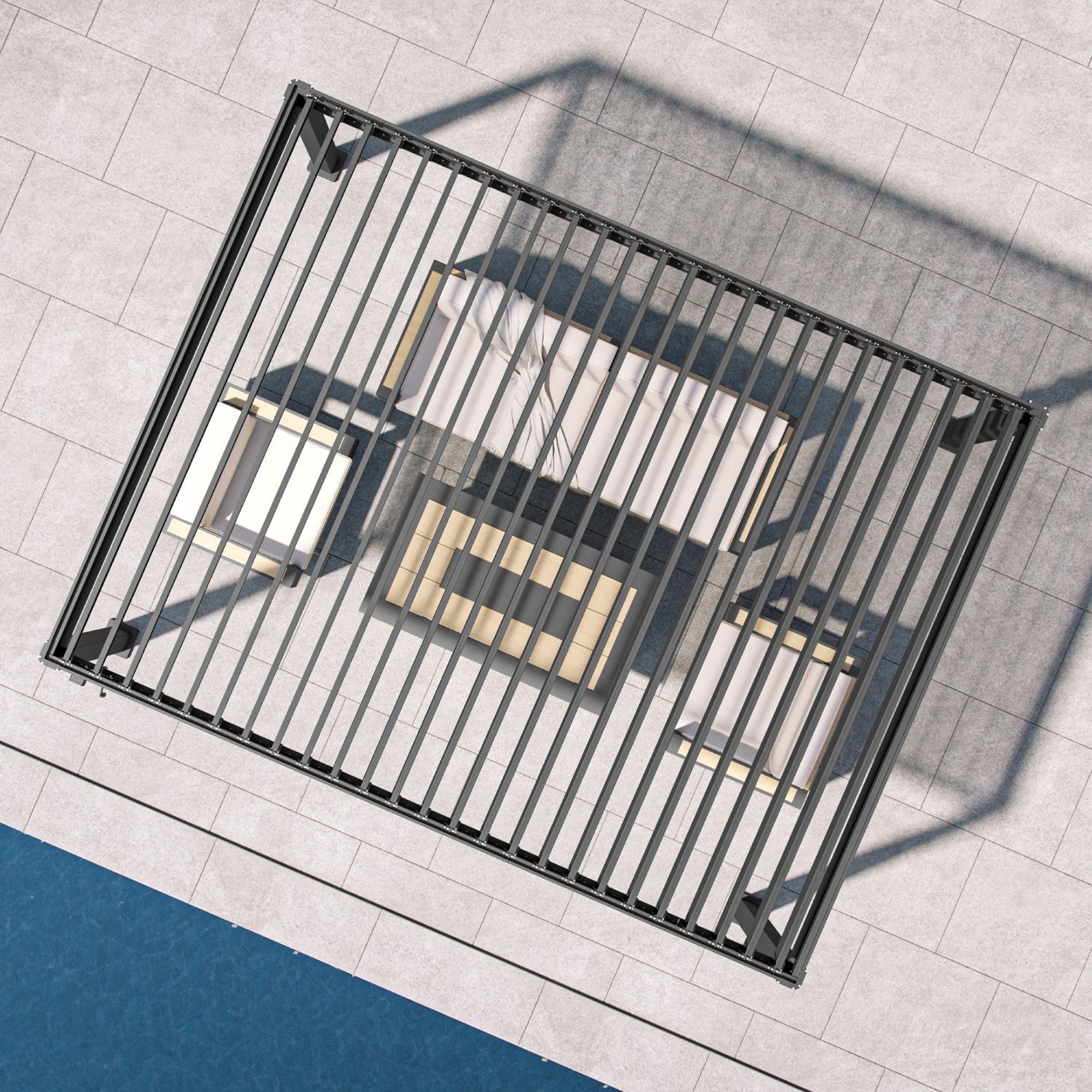

One turn of the crank tilts the metal louvres through a full 87° range — fully open to soak up the sun, angled to catch a breeze, or fully closed to shut out a sudden downpour. Whatever the forecast, your outdoor space stays usable — through scorching summers and whatever winter throws at it.
What Makes It Different
- Powder-coated metal frame: No bare steel, no rust, no repainting.
- Adjustable louvred roof: Smooth 0–87° tilt via effortless manual crank.
- 100% Weatherproof when closed: Engineered with hidden internal drainage through the posts.
- Wind-tested to 80 mph: Independently certified by Bureau Veritas for severe storm seasons.
- Snow-load certified: Rated up to 20 lb/sq ft, built for real winter weather, from Midwest snowfall to Northeast ice storms.
- Freestanding stability: No wall fixing needed, secured with heavy-duty masonry anchors.
Low Maintenance, by Design
No repainting, no rust patches to worry about. Just an occasional hose-down and a quick annual check keep it looking as good as day one — even after a rough winter and a summer of nonstop sun.
Backed with Confidence
Every Atlantic™ comes with a 5-year structural warranty and a 45-day change-of-mind return policy — on top of your rights under applicable state consumer protection laws — so you can make this decision without the second-guessing.

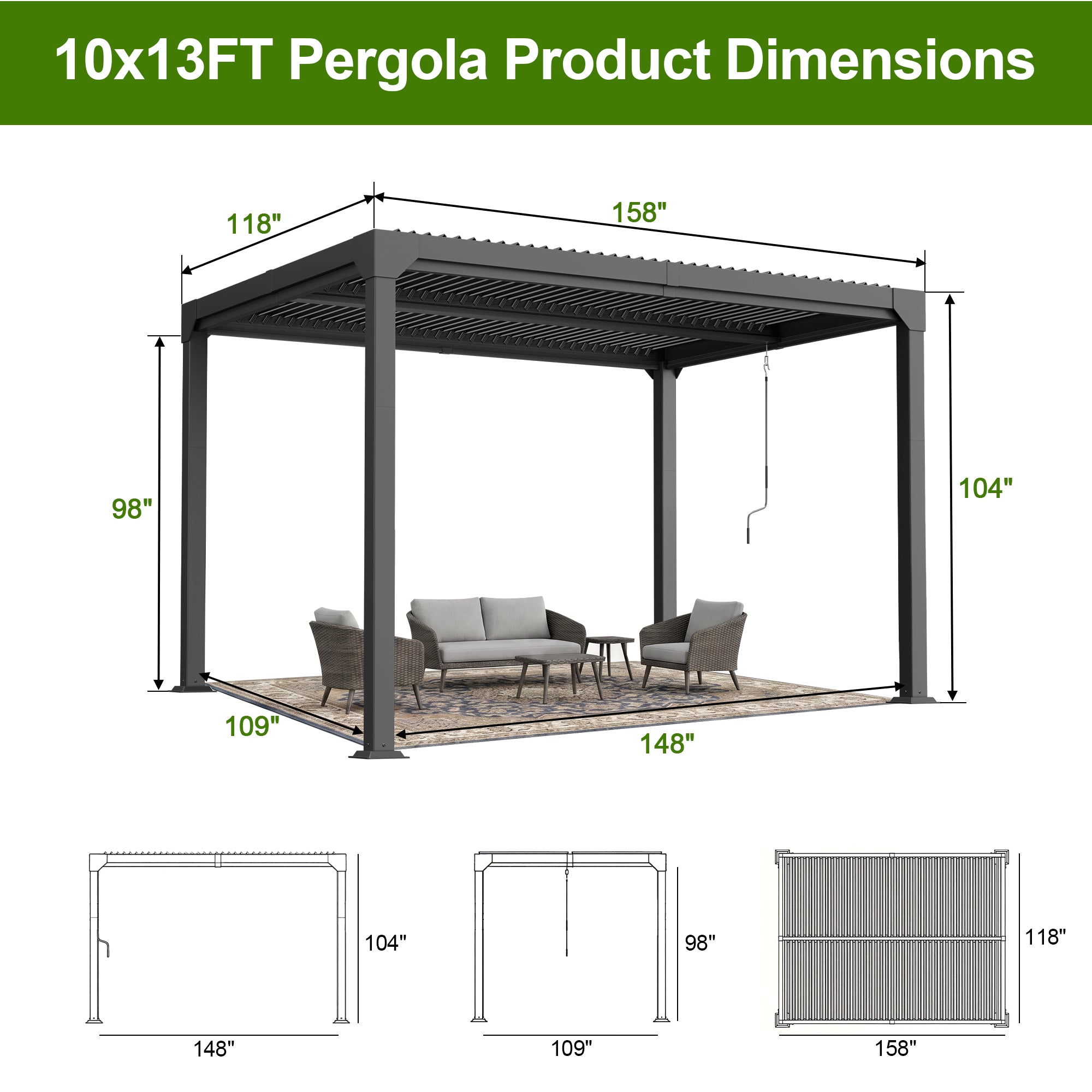

Available in Charcoal Grey, from 10×10 ft up to 13×20 ft — sized to fit backyards both compact and generous.
Turn your outdoor space into the space you actually want to spend time in, rain, shine, or snow.
Technical Specifications
Technical Specifications
Frame & Structure
- Frame Material: High-grade Metal Alloy
- Surface Finish: Premium powder-coated finish (rust-proof and UV-resistant)
- Wall Thickness: Heavy-duty 1/16–3/32 in profile
- Beam Dimensions: Robust 6-1/4 × 3-3/4 in (with integrated gutter) | Wall Thickness: 1/16 in
- Louvre Blade Dimensions: Aegis series 6-1/4 × 1-1/4 in aerodynamic blades | Wall Thickness: 1/16 in
- Fasteners & Fittings: Heavy-duty galvanised steel hardware
Louvre System
- Tilt Range: Smooth 0°–87° adjustable tilt
- Operation: Effortless manual hand-crank system
- Drainage: Fully integrated internal drainage channels, routed through the posts
Weather Performance
- Wind Rating: Independently certified up to 80 mph (Bureau Veritas tested)
- Snow Load: Engineered for up to 20 lb/sq ft (approx. 20 in of snow) —built for serious winter weather, wherever you live
- Water Resistance: Sealed louvre design with internal drainage — storm-ready when louvres are fully closed
- UV Resistance: High-durability powder coat rated for intense summer sun exposure

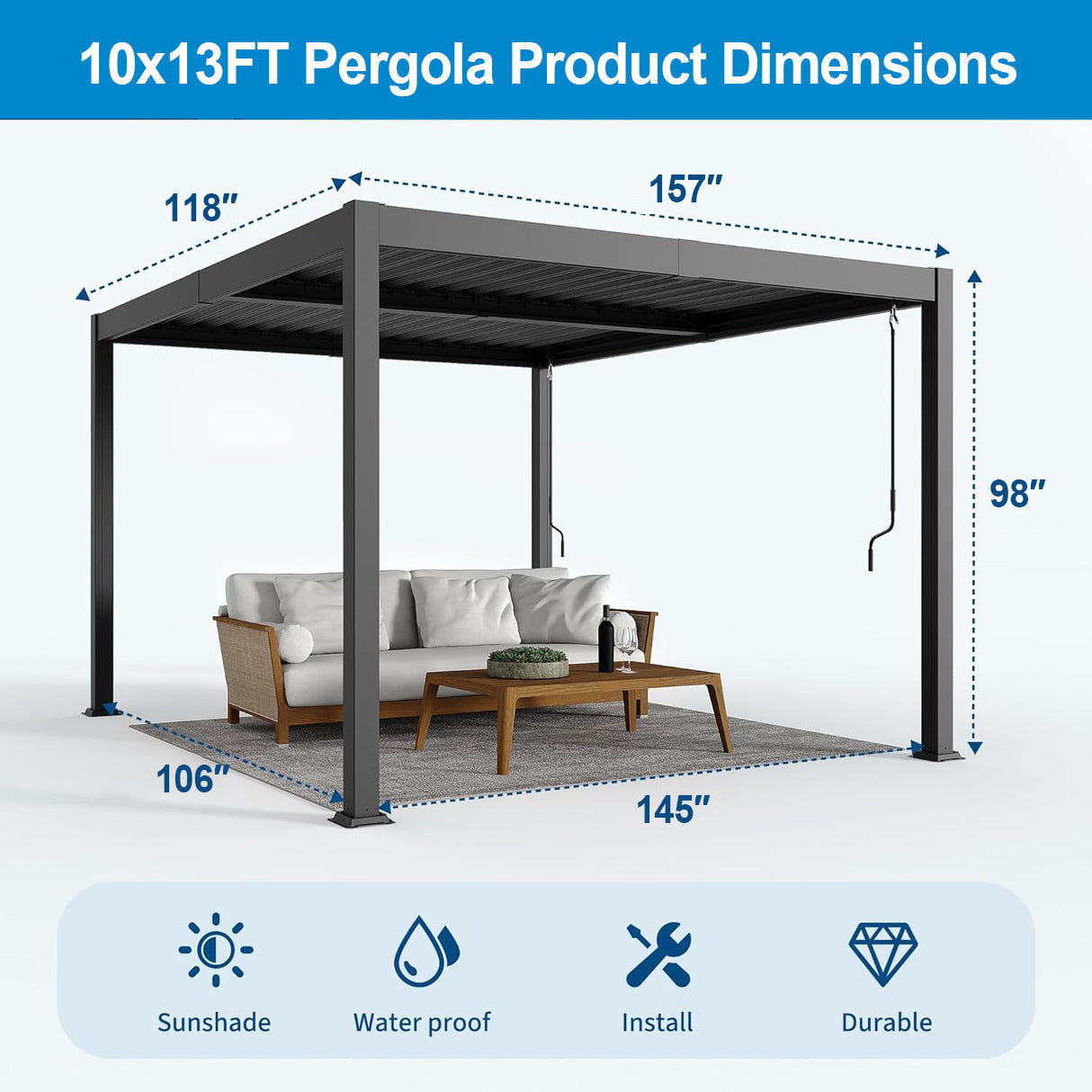

Available Sizes & Colours
- 10 ft Width Series: 10×10 ft | 10×13 ft | 10×16 ft | 10×20 ft
- 13 ft Width Series: 13×13 ft | 13×16 ft | 13×20 ft
- Colour: Charcoal Grey
Warranty & Compliance
- Structural Warranty: 5 Years
- Finish Warranty: 2 Years on surface coating
- All warranties apply in addition to your rights under consumer protection laws in your province or territory.
Installation & Assembly
Installation & Assembly
📥 Download the full graphical guide
- Assembly: Self-assembly
- Fixing Type: Ground-mounted with 3/8 in × 4 in stainless steel masonry anchors (wedge anchor bolts, included)
- Installation Requirement: We recommend securing the pergola onto a flat concrete slab, or setting the posts into concrete footings, especially when the structure height reaches 9+ ft.
- Recommended Installers: A minimum of 3 people is required throughout installation, with at least 2 people needed to safely lift and carry the components from the packaging.
Please Note: This is a general-version manual. Specific installation details such as drainage direction may vary according to your approved order specifications — please review your order details before assembly.
Before You Begin
- Unpacking: Check all parts against the packing list before starting. Do not discard packaging materials until installation is fully complete.
- Surface Protection: Assemble the frame on a soft covering (e.g., carpet or flattened cardboard) to protect the metal profiles from scratching.
- Protective Film: Fully remove the protective film from all components during installation. Once exposed to the sun outdoors, the film becomes very difficult to remove.
- Warranty & Compliance: Do not modify the product or substitute non-original accessories, as this will void your warranty. Sunvanta is not responsible for damage resulting from incorrect assembly.
Tools & Materials Required (purchase locally)
- Silicone sealant (for weather-sealing the post caps)
- Impact drill with a 1/2 in masonry drill bit (drilling depth for anchor bolts: 4 in)
- Phillips (cross-head) screwdriver bit
- 5/32 in Allen key and a 5/8 in wrench
- Steel hammer and rubber mallet
- Tape measure, spirit level, and marker pen
- Step ladder and safety helmet
Function Testing
Before completing final assembly, test the hand-crank mechanism by rotating the louvres fully open and closed. If the louvres turn smoothly, continue to the remaining steps. If not, recheck the connection bar and mechanical arm installation before proceeding.
Maintenance & Care
- Clean the surface at least once a year to preserve the powder-coated finish.
- Use only a soft sponge or non-abrasive cloth. Avoid rags, abrasive cleaning pads, wire wool, or coloured cloths.
- Do not use acidic or alkaline cleaning products. Rinse with neutral-pH clean water and wipe dry.
- If using a pressure washer, keep a safe distance and use an appropriate nozzle, water temperature, and pressure.
- Check all screws for tightness after installation, and re-check at least once a year.
- Regularly inspect seals for leaks, and clear leaves and debris from the gutters to keep drainage channels clear.
Payment & Security

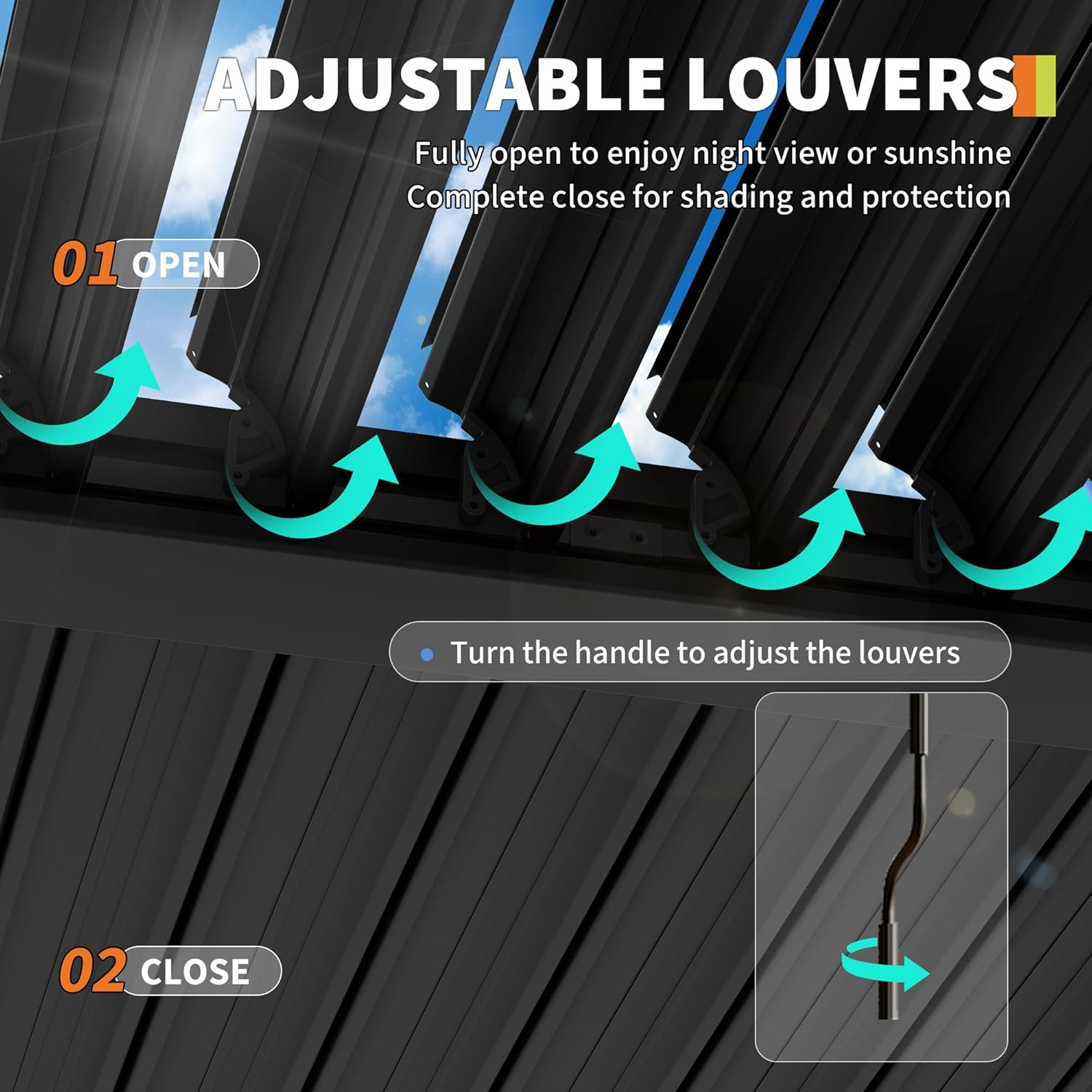

Smooth Louvers at Your Fingertips
Twist the crank, set the mood. Our louvers tilt from 0° to 87° with effortless precision — open wide for sunshine, angle for a gentle breeze, or close completely for shade and shelter. Full control, whenever you need it.
Reliably Strong, Made for Moments
Rain doesn't stop the party. Watch water disappear into hidden channels, travel silently down the posts, and drain cleanly away at the base — leaving your patio completely dry beneath. Smart engineering, invisible in action.
Rainproof Design in Action
Built to weather the elements, designed to elevate the everyday. Whether it's a lazy Sunday afternoon with the family or an evening gathering with friends, this pergola is the backdrop your outdoor life deserves — solid, stylish, and built to last.

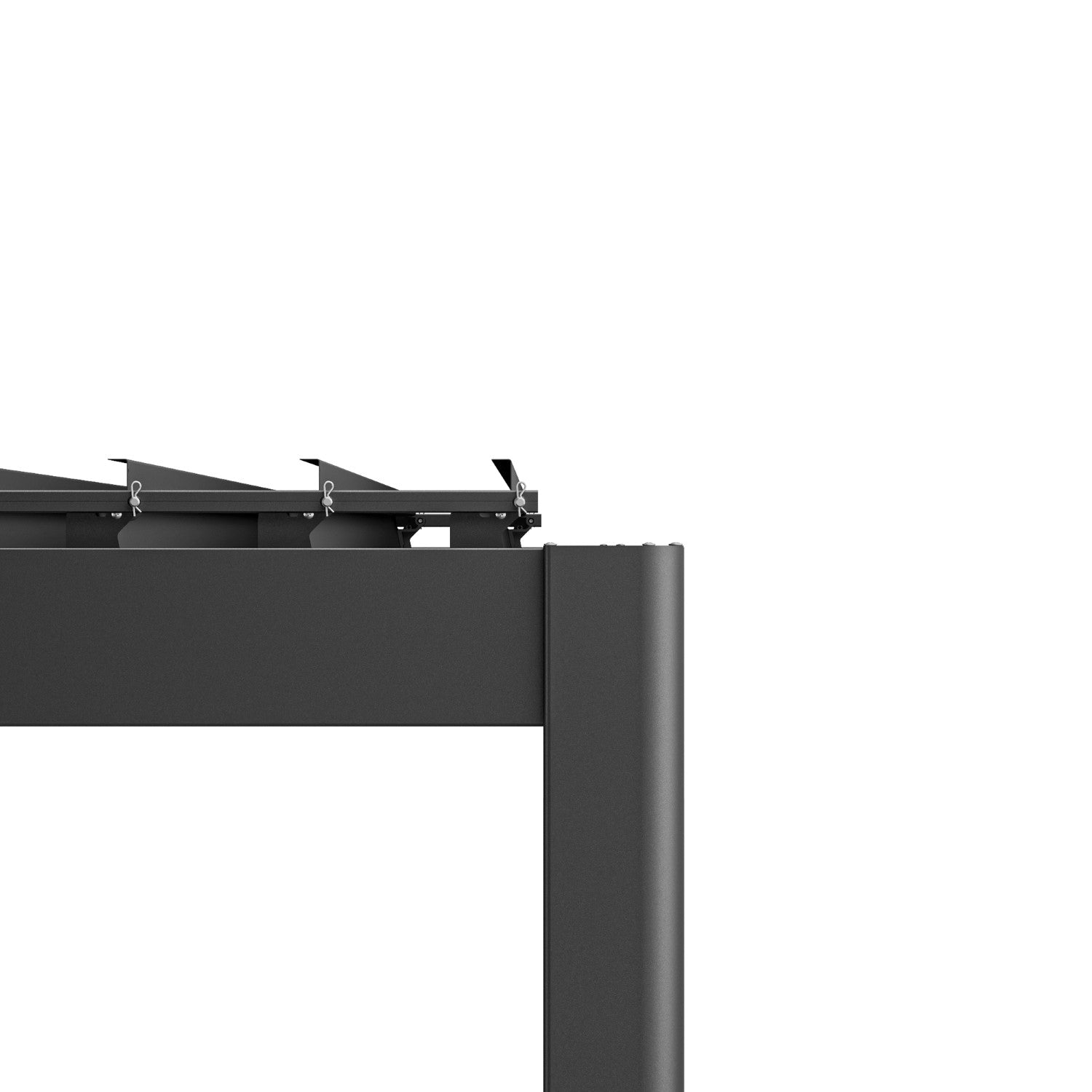

0° to 87° tilt range

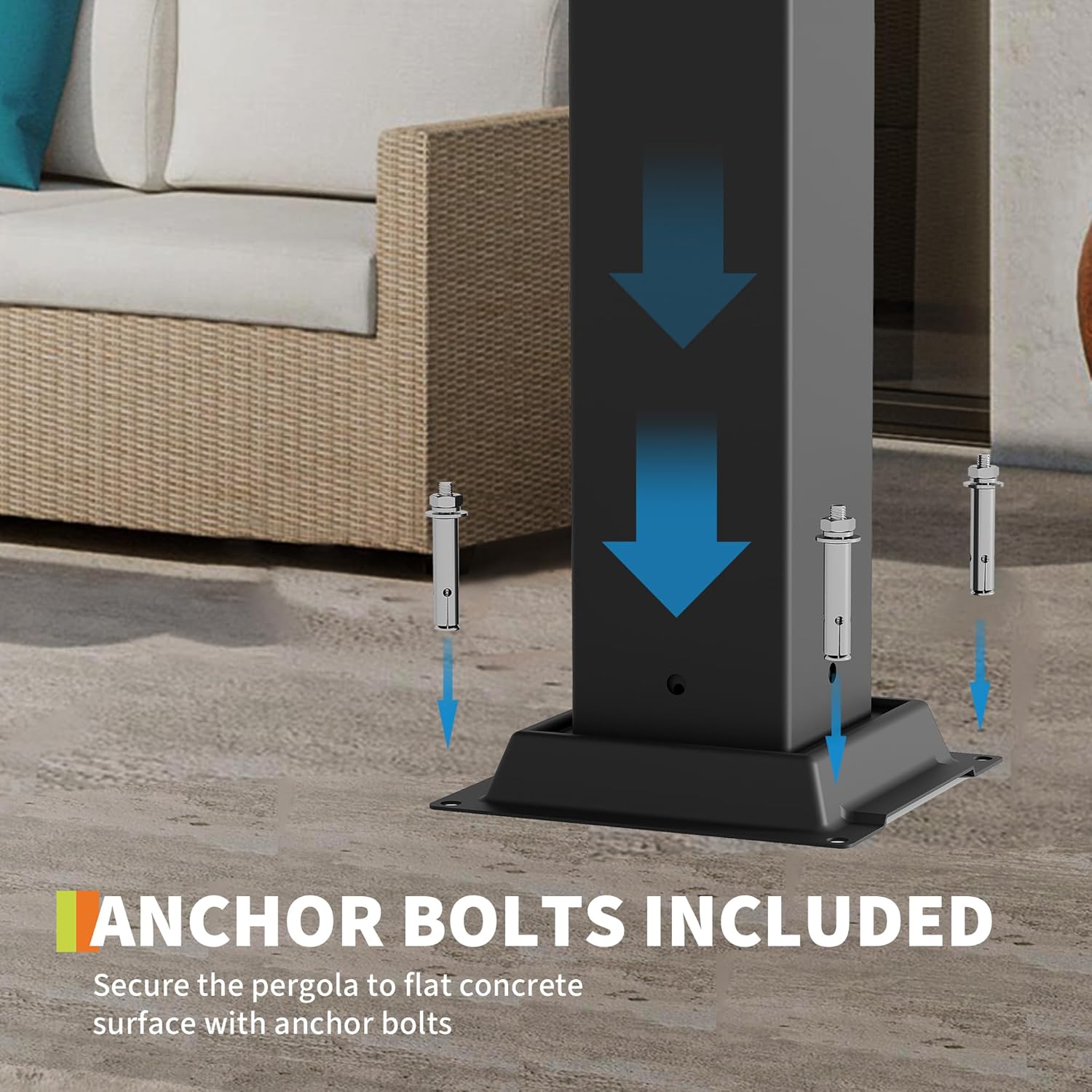

Secure to any flat concrete surface
Heavy-duty anchor bolts fasten each post firmly to the ground, eliminating any risk of shifting or tipping
Rock-solid stability underfoot
Once anchored, the pergola stands completely rigid — no wobble, no movement, even in strong winds

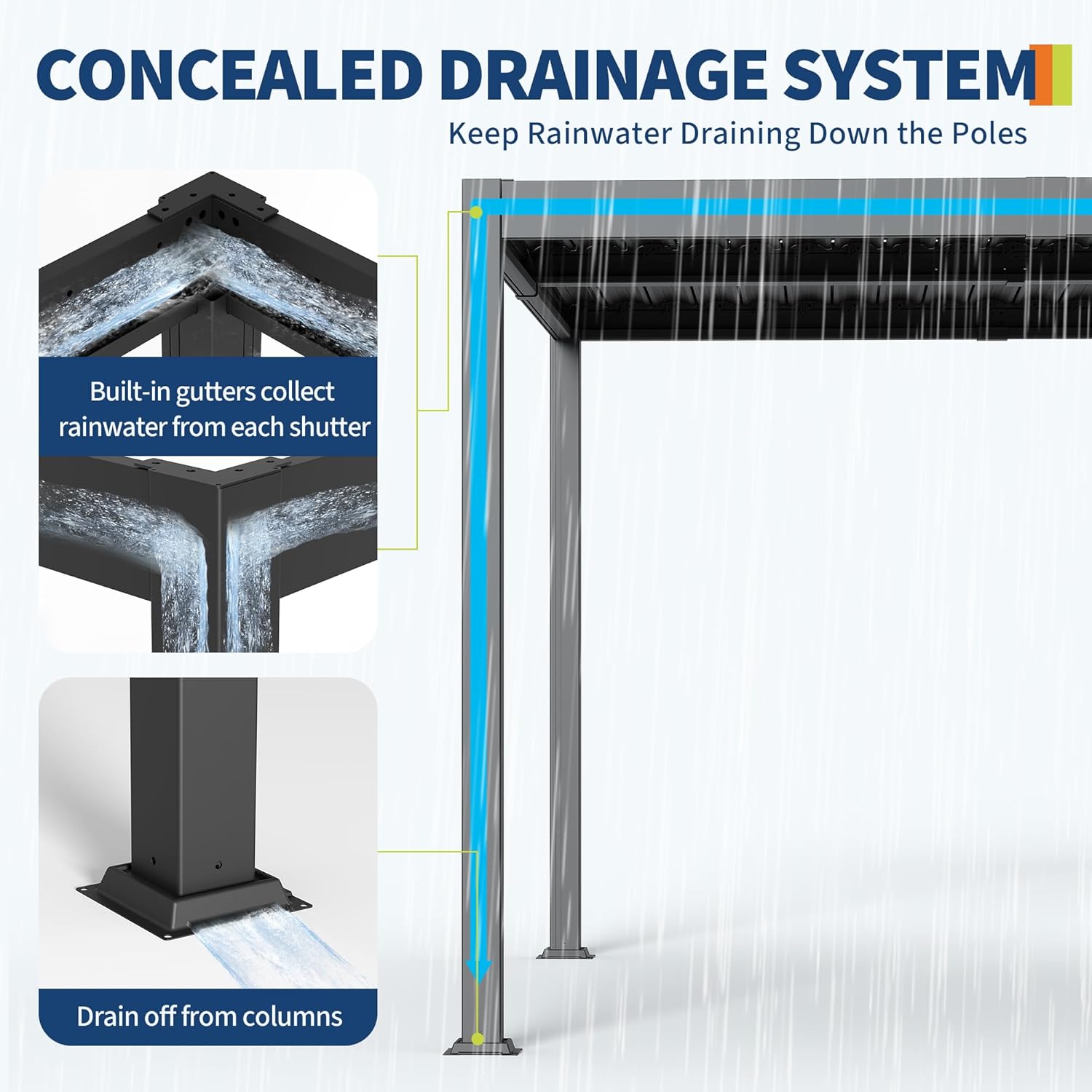

Built-in gutters beneath each louvre
Rainwater is captured at the roof and channelled directly into the frame — no pooling, no overflow
Hidden internal channels
Water flows discreetly through the hollow posts, keeping the exterior completely clean and uncluttered
Base outlets at each column
Rainwater exits neatly at ground level, well away from your seating area — so a downpour needn't cut the evening short
Secure to any flat concrete surface
Heavy-duty anchor bolts fasten each post firmly to the ground, eliminating any risk of shifting or tipping
Rock-solid stability underfoot
Once anchored, the pergola stands completely rigid — no wobble, no movement, even in strong winds

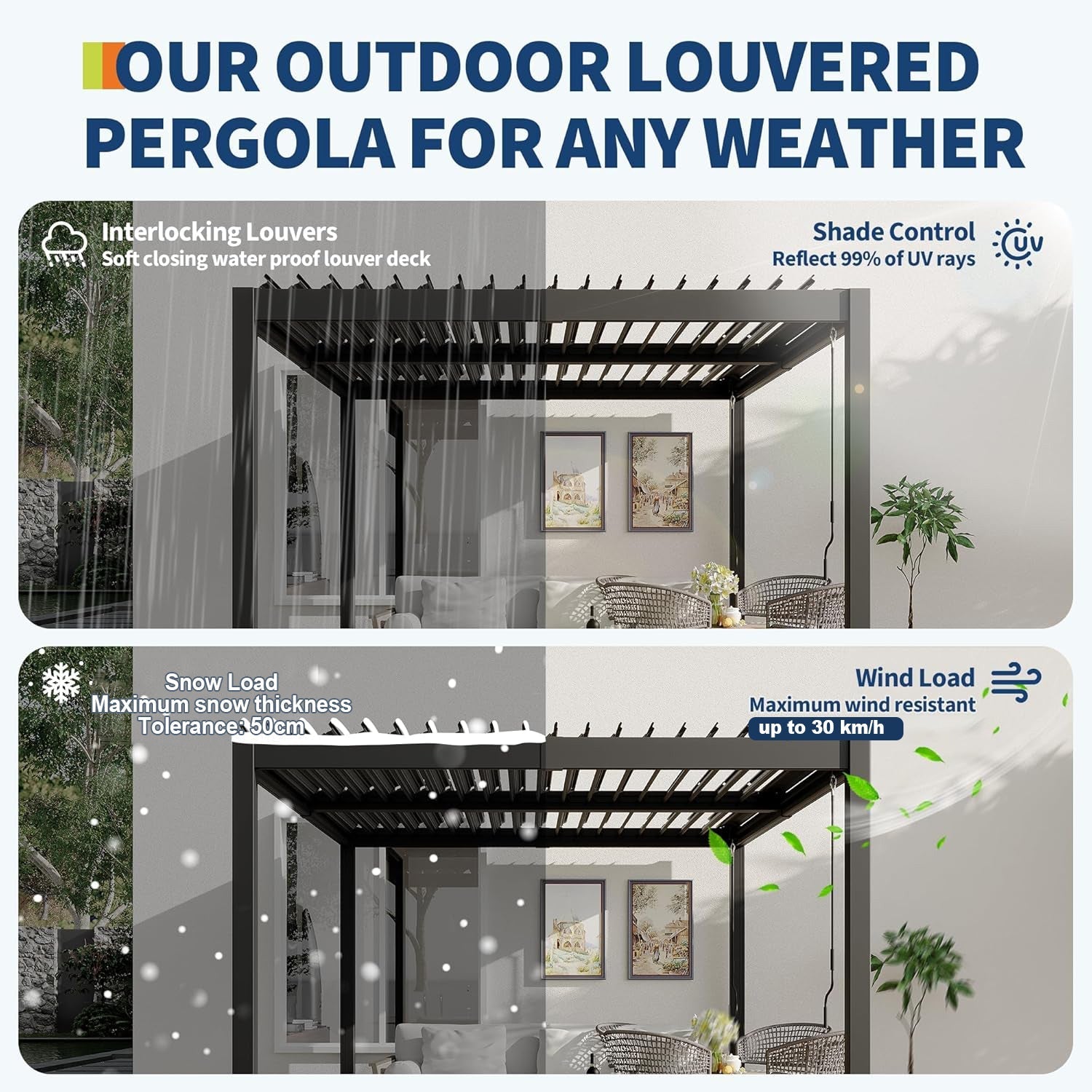

Enduring Comfort Through Every Season
Rain-Ready

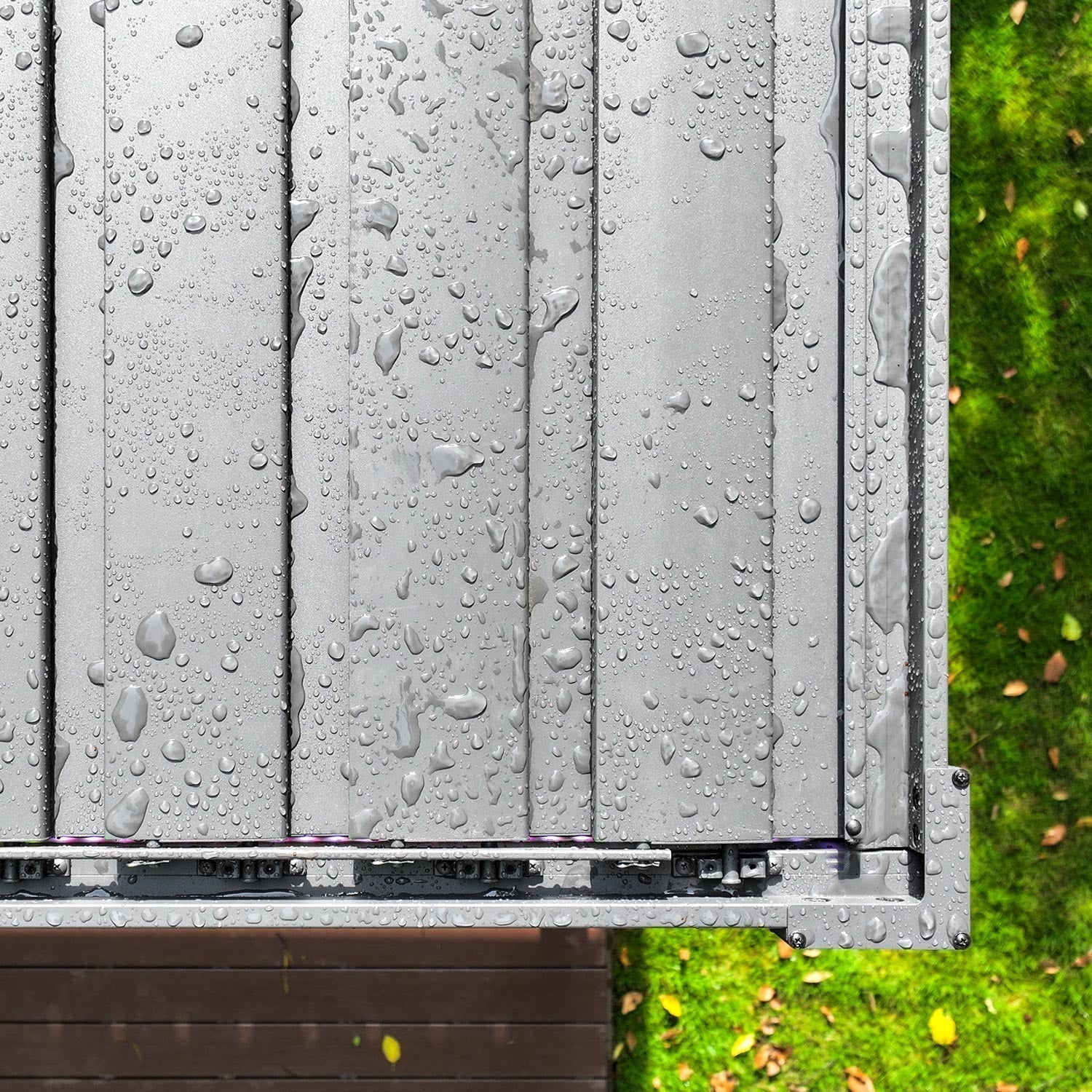

Interlocking louvers close soft and snug — a fully waterproof deck that keeps you dry the second the clouds open up.
Sun,Sorted
Tilt the louvers for full shade and block 99% of UV rays, or open them up for clear sky whenever you fancy.
Snow-Proof
Reinforced metal frame handles up to 20 inches of snow load without breaking a sweat.
Wind-Tested
Independently tested to withstand wind gusts up to 80 mph — engineered to stay steady through severe summer storms and seasonal high winds.
One pergola. Every season. Zero compromise.

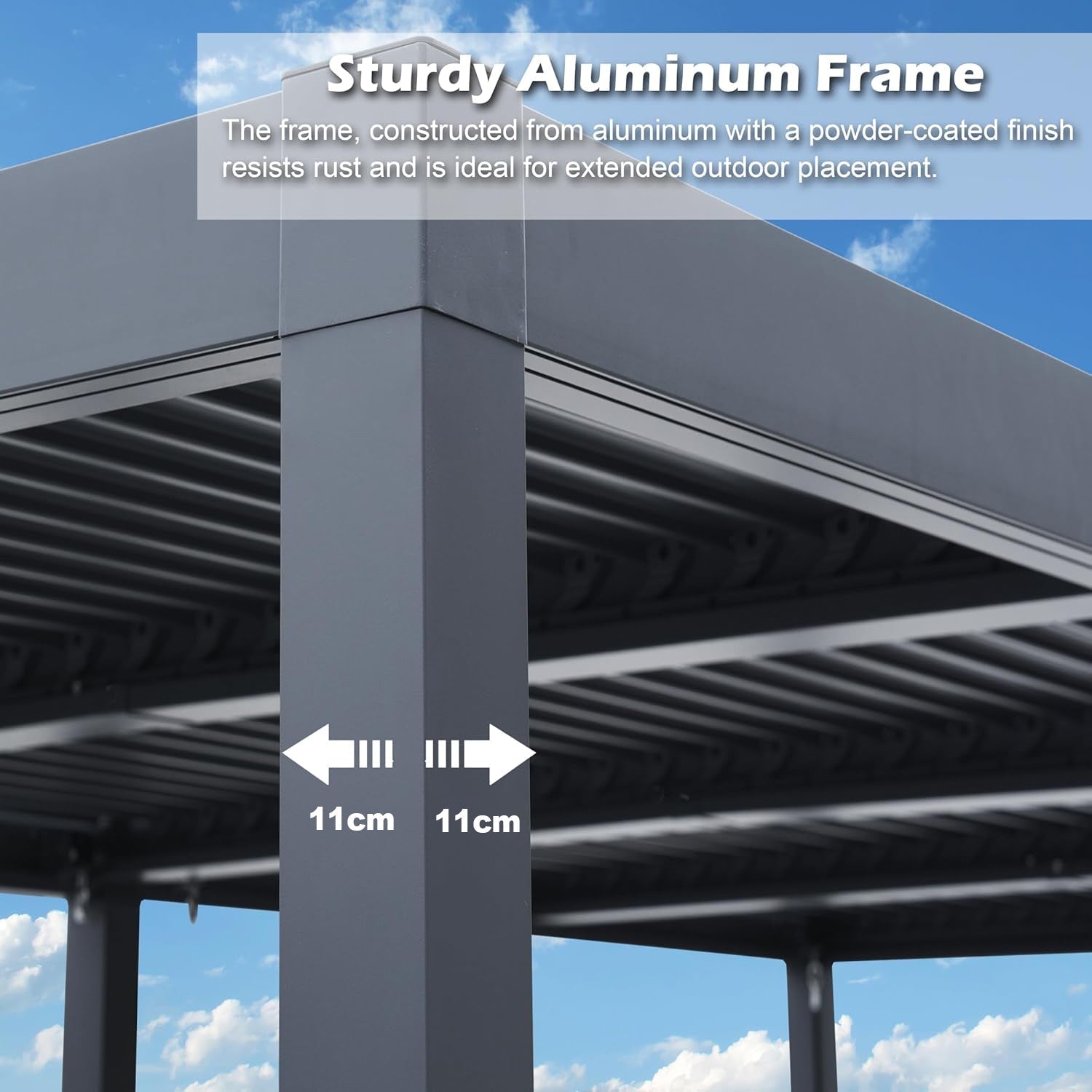

Engineered for Strength, Built to Last
Every frame is crafted from premium metal with a powder-coated finish — naturally rust-resistant and made to stand up to years of outdoor life, no matter what the seasons throw at it. Reinforced corner brackets lock each joint firmly in place, giving the whole structure the strength to stay solid through wind, rain, and everything in between.
UV Protection
Powder-coated finish that won't crack or peel under the sun
Weather-Proof
Independently wind-tested and certified by Bureau Veritas
Fade-Resistance
Colour stays true season after season, year after year

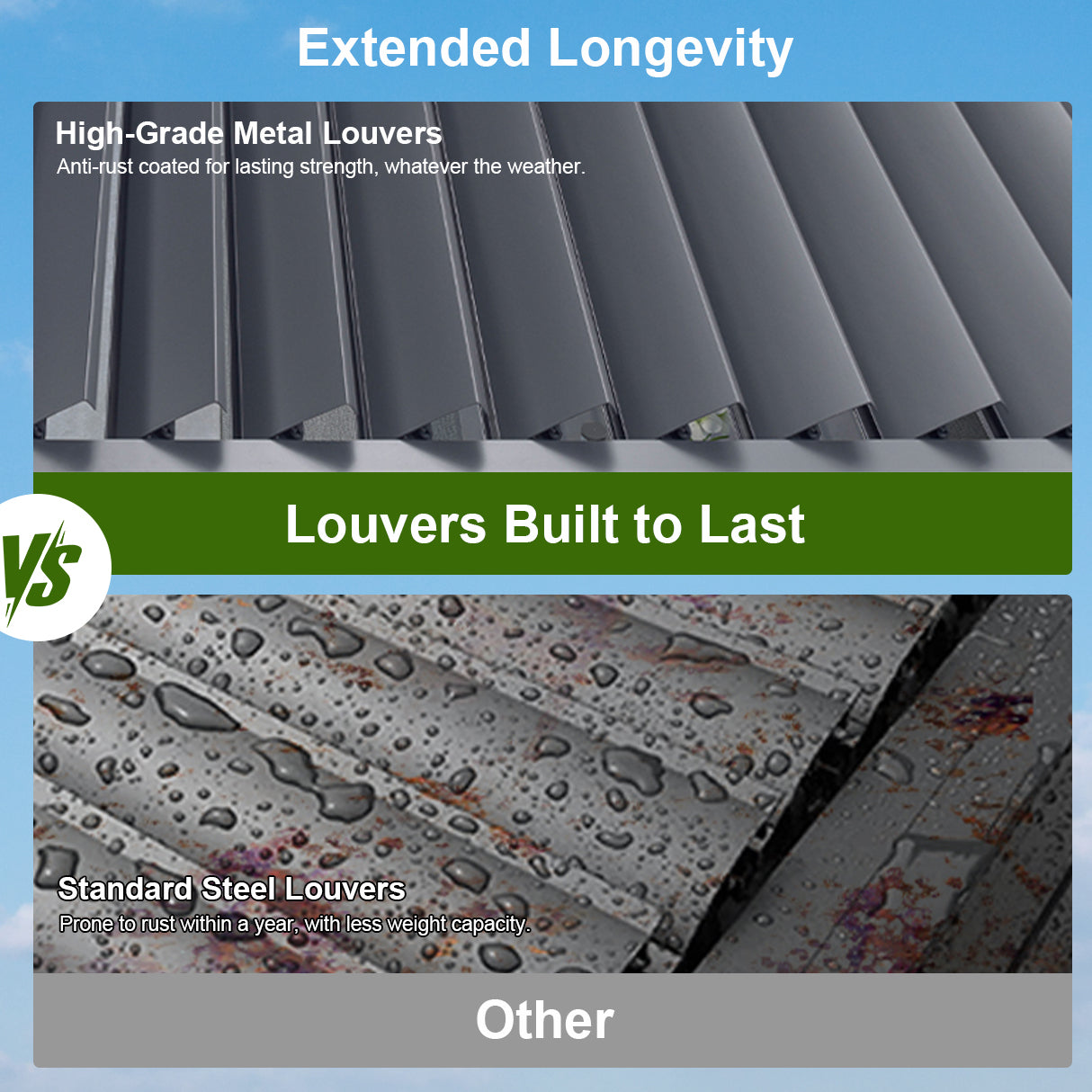

Built to Outlast Whatever the Weather Brings
Steel louvers rust within a year or two — weakening joints, causing leaks, and forcing early replacements. Patioslife pergolas skip that problem entirely: every louver, post and bracket is finished in high-grade, anti-rust coated metal, built to stay strong through frost, wind and rain.
✓ High-Grade Metal
Anti-rust coated for lasting strength
✕ Standard Steel
Rusts within the first year
Low maintenance, no repainting — just a pergola that still looks and performs like new, years on.
Built once. Built right.

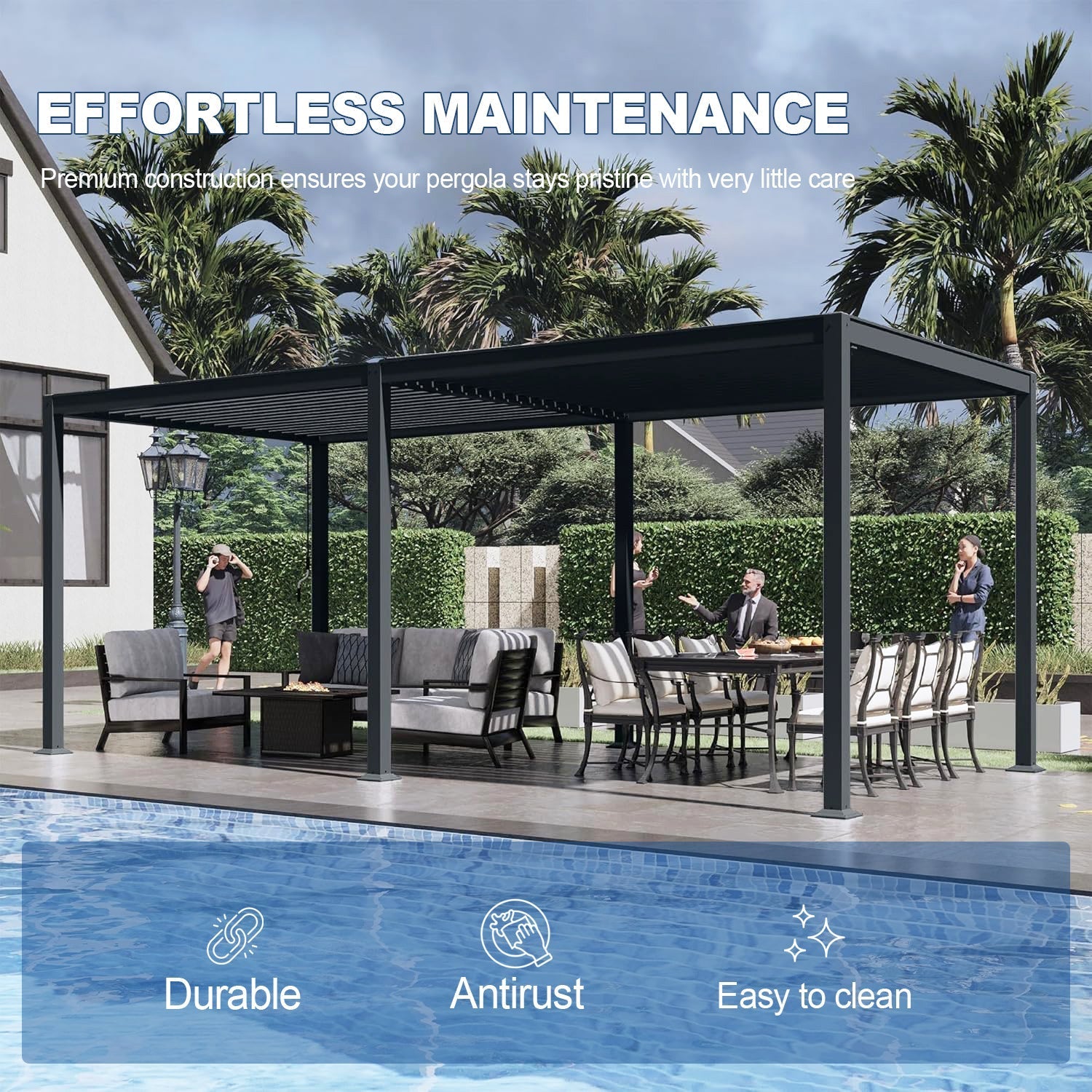

Effortless Maintenance
Rain, shine, or a full winter freeze — this pergola doesn't ask much of you in return. The rust-resistant metal frame stays looking sharp with barely any upkeep, so the only thing on your to-do list is enjoying the space underneath it.
No repainting. No rust patches. Just a quick wipe-down when it needs one — that's the whole routine.
Durable · Antirust · Easy to Clean
Before
After
Frequently Asked Questions
Is the pergola waterproof?
Is the pergola waterproof?
The louvered roof is designed to provide shade when open and full rain protection when closed. An integrated drainage system channels rainwater through the posts to prevent pooling on the roof.
How strong is the pergola in windy conditions?
How strong is the pergola in windy conditions?
Our metal pergolas are engineered to withstand strong winds when properly installed on a solid base. For safety, we recommend keeping the louvers closed and securing the structure during extreme weather events.
Can I install the pergola myself?
Can I install the pergola myself?
Yes. Each pergola comes with detailed instructions and all required fittings. Most customers can assemble it with basic tools, though we recommend two or more people for easier setup. Professional installation is also an option if you prefer.
What kind of base do I need?
What kind of base do I need?
For maximum stability, the pergola should be anchored to a flat, solid surface such as concrete or a reinforced deck using the supplied anchor bolts.
Will the pergola rust?
Will the pergola rust?
No. The frame is made from powder-coated aluminium and galvanised steel components, making it highly resistant to rust, corrosion, and outdoor wear.an answer to the question here, with as much detail as possible to help your customers.
How do I maintain the pergola?
How do I maintain the pergola?
Provide an answer to the question here, with as much detailMaintenance is minimal. Simply rinse the frame and louvers occasionally with water to remove dust or debris. Check the drainage outlets to ensure they remain clear. as possible to help your customers.
Can the pergola be used all year round?
Can the pergola be used all year round?
Absolutely. Whether it’s summer sunshine or a rainy day, the adjustable louvered roof gives you control over light and shade, making it perfect for year-round outdoor living.
